SNAT, DNAT and Port Forwarding

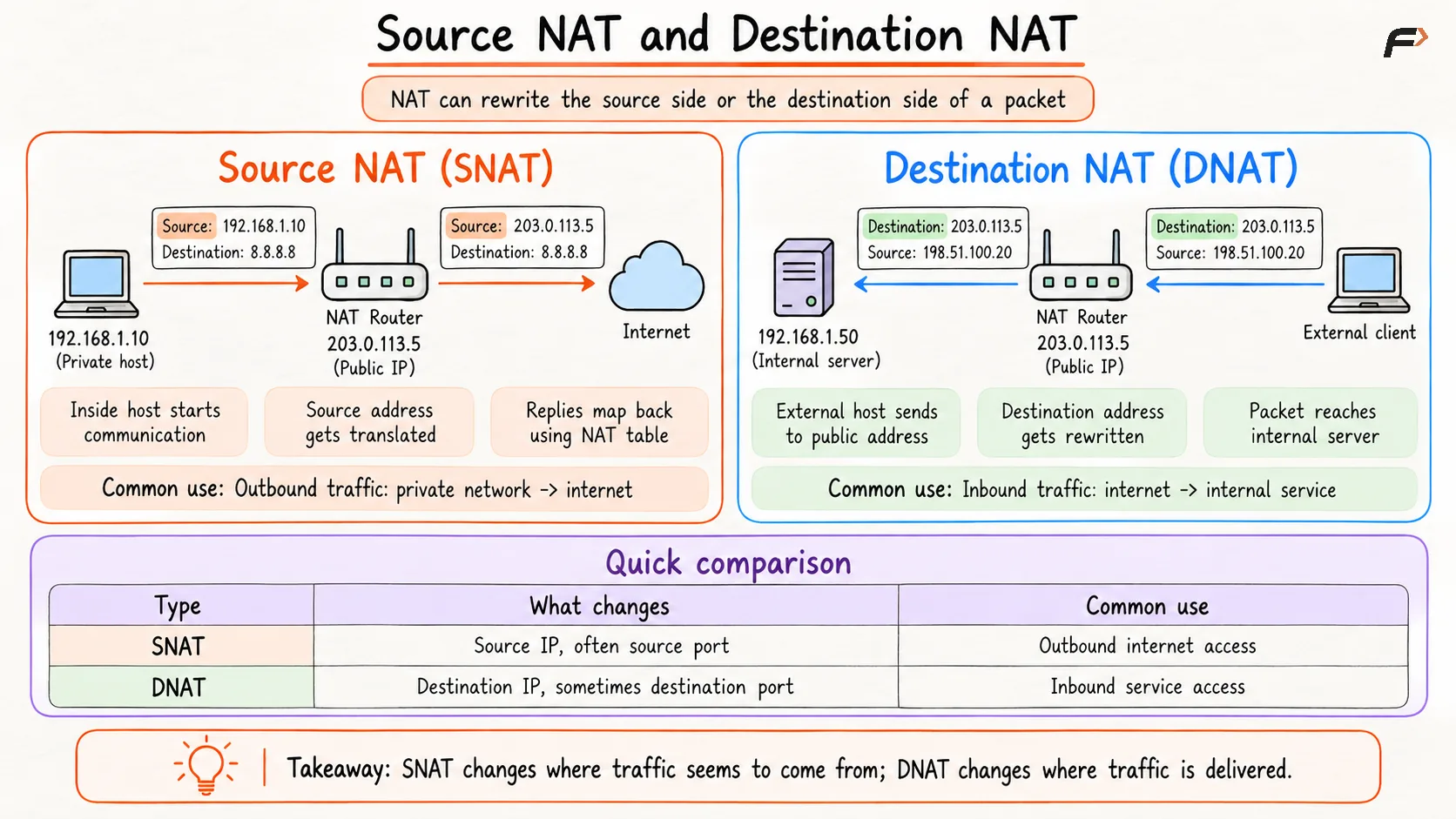

Source NAT and Destination NAT

Another common way to classify NAT is by looking at which part of the packet is being rewritten.

Source NAT

Source NAT is used when internal devices initiate outbound communication. The NAT device changes the source address of the packet before it leaves the network.

This is the normal internet access case in homes and offices. A private system sends traffic outward, and the NAT device replaces the private source IP with a public one.

In simple terms:

• Inside host starts the communication

• Source address gets translated

• Replies are mapped back using the NAT table

Destination NAT

Destination NAT is used when incoming traffic from outside needs to be redirected to an internal host. The NAT device changes the destination address of the arriving packet so it reaches the correct private server.

This is commonly used when an organization wants to make an internal service reachable from outside without giving that internal host its own public IP.

In simple terms:

• External host sends traffic toward a public address

• NAT device rewrites the destination

• Packet is delivered to the internal server

Port Forwarding

Port forwarding is one of the most common practical uses of destination NAT. It allows traffic arriving on a specific public port to be redirected to a particular private IP address and port.

For example:

• Public 203.0.113.5:80 => Private 192.168.1.20:80

• Public 203.0.113.5:22 => Private 192.168.1.30:22

This is useful when hosting services such as:

• Web servers

• SSH access

• Game servers

• Camera systems

• Remote desktop services

Without port forwarding, outside users usually cannot directly start connections to private devices behind NAT.

Port forwarding is powerful, but it also increases exposure. Once a port is forwarded, the internal service behind it becomes reachable from outside and must be secured properly.
