Shortest Path in an Unweighted Undirected Graph Using BFS

74.5k
0

Given an undirected graph with V vertices numbered from 0 to V - 1, E edges, and a source vertex src, return the shortest distance from source to every vertex.

Every edge has unit weight. If a vertex cannot be reached from source, store -1 for the unreachable vertex.

Example 1

Input: V = 9, E = 10, edges = [[0,1],[0,3],[1,2],[3,4],[4,5],[2,6],[5,6],[6,7],[6,8],[7,8]], src = 0

Output: [0,1,2,1,2,3,3,4,4]

Explanation: BFS from vertex 0 reaches vertices by levels. Distances become 0 for source, 1 for vertices 1 and 3, 2 for vertices 2 and 4, and so on.

Example 2

Input: V = 4, E = 2, edges = [[0,3],[1,3]], src = 3

Output: [1,1,-1,0]

Explanation: Vertices 0 and 1 are one edge away from source 3. Vertex 2 is unreachable, so distance remains -1.

Approach

In a unit-weight graph, every edge contributes exactly one step to the path length. Breadth First Search explores vertices level by level, processing all vertices at distance d before any vertex at distance d+1.

The first visit to a vertex therefore provides the minimum number of edges from the source. A distance array initialized with -1 stores shortest distances while also identifying unvisited and unreachable vertices.

Algorithm

  • Initialize an adjacency list for V vertices, providing efficient access to every neighboring vertex.

  • Traverse all edges and add both directions to the adjacency list, since each undirected edge permits movement between both endpoints.

  • Create a distance array filled with -1, where -1 indicates that no path from the source has been discovered.

  • Set the source distance to 0 and add the source to a queue, establishing the first BFS level.

  • Continue processing while the queue contains vertices, ensuring level-by-level exploration of all reachable vertices.

  • For every neighbor having distance -1, set the distance to distance[current]+1 and add the neighbor to the queue, recording the shortest path during the first visit.

  • Return the distance array after BFS finishes, leaving every unreachable vertex marked as -1.

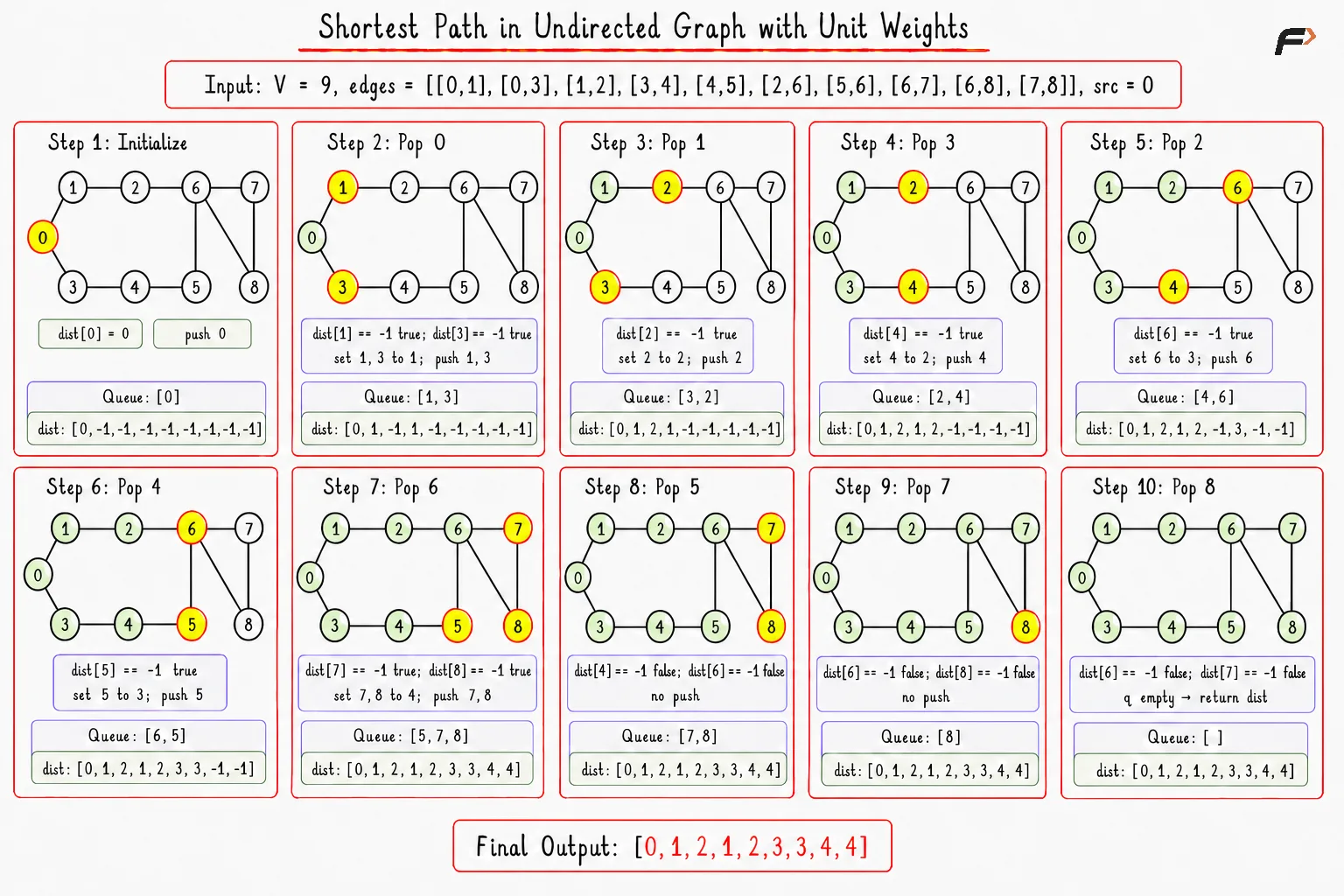

Dry Run

Shortest Path

Shortest Path

Solution

#include <bits/stdc++.h>
using namespace std;
class Solution {
public:
// Return shortest distance from source to every vertex.
vector<int> shortestPath(vector<vector<int>>& edges, int V, int E, int src) {
vector<vector<int>> adj(V);
// Build undirected adjacency list.
for (vector<int>& edge : edges) {
int u = edge[0];
int v = edge[1];
adj[u].push_back(v);
adj[v].push_back(u);
}
vector<int> dist(V, -1);
queue<int> q;
// Source distance is always zero.
dist[src] = 0;
q.push(src);
// BFS visits vertices level by level.
while (!q.empty()) {
int node = q.front();
q.pop();
// Visit every adjacent vertex.
for (int neighbor : adj[node]) {
// First visit gives shortest unit-weight distance.
if (dist[neighbor] == -1) {
dist[neighbor] = dist[node] + 1;
q.push(neighbor);
}
}
}
return dist;
}
};
// Driver code.
int main() {
int V = 9;
int E = 10;
vector<vector<int>> edges = {
{0, 1}, {0, 3}, {1, 2}, {3, 4}, {4, 5},
{2, 6}, {5, 6}, {6, 7}, {6, 8}, {7, 8}
};
int src = 0;
Solution sol;
vector<int> ans = sol.shortestPath(edges, V, E, src);
// Print computed distances.
for (int value : ans) {
cout << value << " ";
}
return 0;
}

Complexity Analysis

Time Complexity: O(V+E), where V and E are the numbers of vertices and undirected edges; every vertex is processed once and every edge is examined twice.

Space Complexity: O(V+E), where the adjacency list stores V vertices and 2E entries, while the distance array and queue require O(V) space.

Interview follow-up Questions

BFS processes vertices in increasing edge count from source, so first visit always gives minimum unit-weight distance.
