Network Delay Time Using Dijkstra's Algorithm

81.2k
0

A network contains n nodes labeled from 1 to n. Each directed edge [u,v,w] means a signal needs w time units to travel from node u to node v.

A signal starts from node k. Return the minimum time required for every node to receive the signal. Return -1 if at least one node cannot receive the signal.

Example 1

Input: times = [[2,1,1],[2,3,1],[3,4,1]], n = 4, k = 2

Output: 2

Explanation: Nodes 1 and 3 receive the signal after 1 time unit. Node 4 receives the signal through node 3 after 2 time units.

Example 2

Input: times = [[1,2,1]], n = 2, k = 2

Output: -1

Explanation: No directed route reaches node 1 from source node 2.

Brute Force Approach

Signal arrival time at a node equals the shortest directed-path distance from source k. Bellman–Ford repeatedly scans every directed edge, allowing each relaxation round to extend known shortest paths by one additional edge.

A shortest simple path contains at most N-1 edges, so N-1 rounds are sufficient. The largest finite shortest distance represents the time required for the signal to reach the final node.

Algorithm

  • Initialize all distances as infinity and set distance[k] to 0, establishing node k as the signal source.

  • Perform at most N-1 relaxation rounds, since no shortest simple path can contain more than N-1 edges.

  • At the beginning of every round, initialize an update flag as false to detect whether any shorter route is discovered.

  • Traverse every directed edge and skip relaxation when the starting node remains unreachable.

  • When distance[source]+travelTime is smaller, update the destination distance and set the update flag to true.

  • End the relaxation process when a complete round produces no update, as all shortest distances have stabilized.

  • Scan all nodes, return -1 upon finding an infinite distance, and otherwise return the maximum distance as the network delay time.

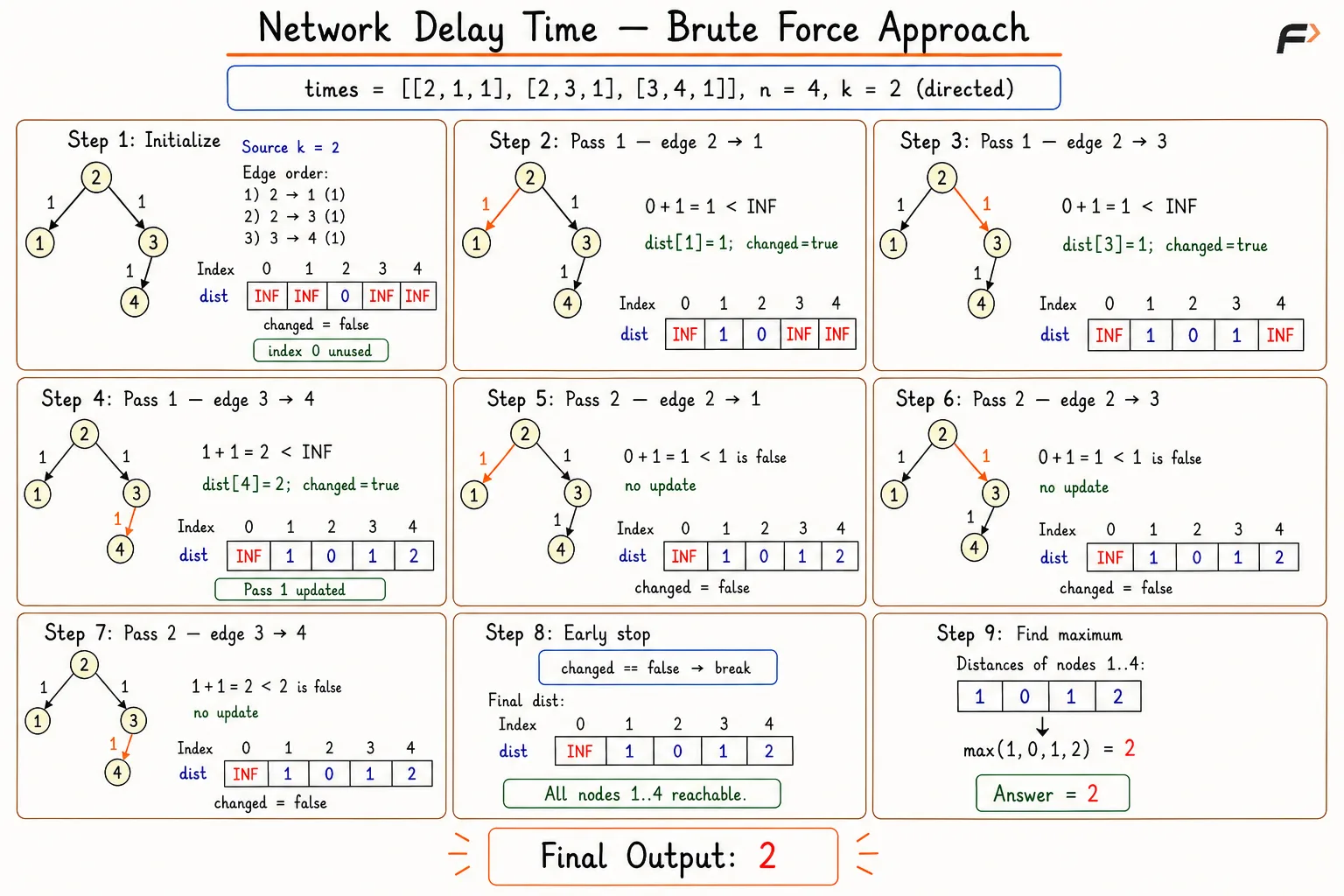

Dry Run

network-delay-time-brute-force-corrected

network-delay-time-brute-force-corrected

Solution

#include <bits/stdc++.h>
using namespace std;
class Solution {
public:
// Return minimum time required for every node to receive the signal.
long long networkDelayTime(vector<vector<int>>& times, int n, int k) {
// Use a wide sentinel outside valid accumulated times.
const long long INF = numeric_limits<long long>::max() / 4;
// Store shortest signal time using long long.
vector<long long> dist(n + 1, INF);
// Source receives the signal immediately.
dist[k] = 0;
// Propagate shortest distances through at most n - 1 edge rounds.
for (int pass = 1; pass <= n - 1; pass++) {
bool changed = false;
// Relax every directed edge in input order.
for (const vector<int>& edge : times) {
int from = edge[0];
int to = edge[1];
long long travelTime = edge[2];
// Ignore edges whose starting node remains unreachable.
if (dist[from] == INF) {
continue;
}
// Record a faster signal arrival.
if (dist[from] + travelTime < dist[to]) {
dist[to] = dist[from] + travelTime;
changed = true;
}
}
// Stop after a round without any improvement.
if (!changed) {
break;
}
}
long long answer = 0;
// Find the last signal arrival among all nodes.
for (int node = 1; node <= n; node++) {
// If any node is unreachable, signal cannot reach all nodes.
if (dist[node] == INF) {
return -1;
}
// Track the maximum shortest distance.
answer = max(answer, dist[node]);
// Stop after processing the last valid node.
if (node == n) {
break;
}
}
// Return the time when the last node receives the signal.
return answer;
}
};
// Driver code.
int main() {
vector<vector<int>> times = {
{2, 1, 1}, {2, 3, 1}, {3, 4, 1}
};
int n = 4;
int k = 2;
Solution sol;
cout << sol.networkDelayTime(times, n, k);
return 0;
}

Complexity Analysis

Time Complexity: O(N×M), where N is the number of nodes and M is the number of directed edges; up to N-1 rounds scan all M edges.

Space Complexity: O(N), where the distance array stores one shortest signal-arrival time for each of the N nodes.

Optimal Approach

All travel times are non-negative, allowing Dijkstra’s Algorithm to finalize signal-arrival times in increasing order. A binary min-heap efficiently selects the node having the earliest known arrival time.

Every successful relaxation inserts a new arrival–node pair into the heap. Outdated pairs are skipped, while the largest final shortest distance represents the total network delay.

Algorithm

  • Build a directed weighted adjacency list from all signal times, storing each destination node with the corresponding travel time.

  • Initialize all distances as infinity, set distance[k] to 0, and insert {0, k} into a min-heap.

  • Continue processing while the heap contains entries and remove the pair having the smallest arrival time.

  • Skip the removed pair when the heap time differs from the current stored distance, as the pair represents an outdated route.

  • Traverse every outgoing edge and calculate the candidate arrival time as currentTime+edgeWeight.

  • Upon finding a smaller arrival time, update the neighbor’s distance and insert the new arrival–neighbor pair into the heap.

  • Scan all nodes, return -1 upon finding an infinite distance, and otherwise return the maximum shortest distance as the network delay time.

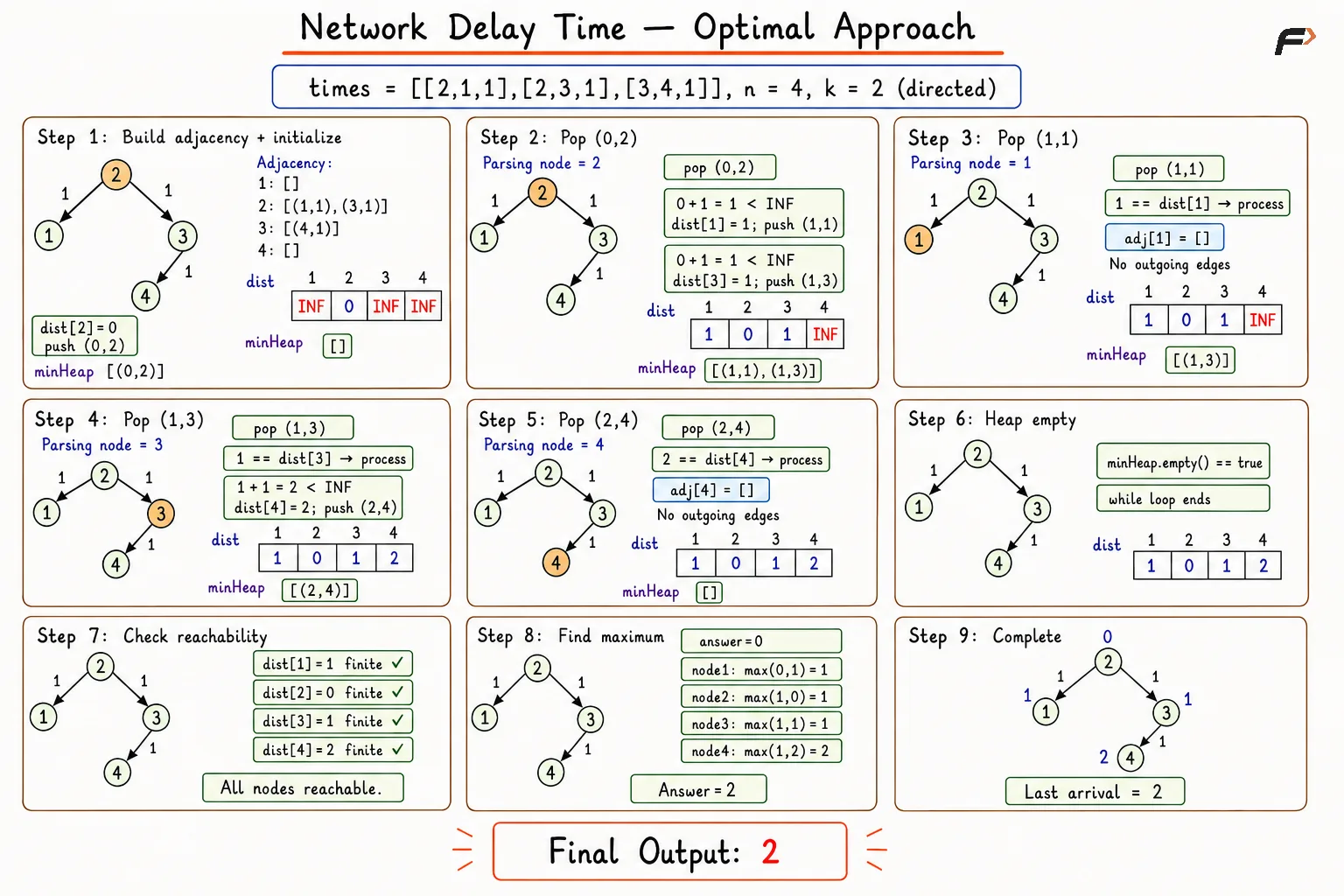

Dry Run

network-delay-time-dijkstra-parsing-nodes-corrected

network-delay-time-dijkstra-parsing-nodes-corrected

Solution

#include <bits/stdc++.h>
using namespace std;
class Solution {
public:
// Return minimum time required for every node to receive the signal.
long long networkDelayTime(vector<vector<int>>& times, int n, int k) {
vector<vector<pair<int, int>>> adj(n + 1);
// Build a directed weighted adjacency list.
for (const vector<int>& edge : times) {
int from = edge[0];
int to = edge[1];
int travelTime = edge[2];
adj[from].push_back({to, travelTime});
}
// Use a wide sentinel outside valid accumulated times.
const long long INF = numeric_limits<long long>::max() / 4;
vector<long long> dist(n + 1, INF);
priority_queue<
pair<long long, int>,
vector<pair<long long, int>>,
greater<pair<long long, int>>
> minHeap;
// Start Dijkstra traversal from source k.
dist[k] = 0;
minHeap.push({0, k});
// Process available nodes by earliest signal arrival.
while (!minHeap.empty()) {
auto [currentTime, node] = minHeap.top();
minHeap.pop();
// Skip an entry replaced by a faster route.
if (currentTime != dist[node]) {
continue;
}
// Relax every outgoing directed edge.
for (const auto& [neighbor, travelTime] : adj[node]) {
long long candidate = currentTime + travelTime;
// Record a faster signal arrival.
if (candidate < dist[neighbor]) {
dist[neighbor] = candidate;
minHeap.push({candidate, neighbor});
}
}
}
long long answer = 0;
// Find the last signal arrival among all nodes.
for (int node = 1; node <= n; node++) {
// If any node is unreachable, return -1.
if (dist[node] == INF) {
return -1;
}
answer = max(answer, dist[node]);
// Stop after processing the last node.
if (node == n) {
break;
}
}
// Return the final network delay time.
return answer;
}
};
// Driver code.
int main() {
vector<vector<int>> times = {
{2, 1, 1}, {2, 3, 1}, {3, 4, 1}
};
int n = 4;
int k = 2;
Solution sol;
cout << sol.networkDelayTime(times, n, k);
return 0;
}

Complexity Analysis

Time Complexity: O((N+M)×log N), where N is the number of nodes and M is the number of directed edges; heap operations process extractions and successful relaxations.

Space Complexity: O(N+M), where the adjacency list stores N nodes and M edges, while the distance array and heap require up to O(N+M) space.

Interview follow-up Questions

Every node receives the signal at the corresponding shortest arrival time, and complete delivery finishes at the latest arrival.
