Bridges in a Graph Using Tarjan's Algorithm

112.8k
0

Given a connected, undirected graph with V vertices numbered from 0 to V-1 and an edge list, return every bridge in the graph.

Deleting a bridge increases the number of connected components. Return every bridge as [minEndpoint, maxEndpoint] in lexicographically sorted order. Parallel edges are treated as separate edge occurrences.

Example 1

Input: V = 5, edges = [[0,1],[1,2],[2,0],[1,3],[3,4]]

Output: [[1,3],[3,4]]

Explanation: Removing edge [1,3] separates vertices 3 and 4 from the cycle. Removing edge [3,4] isolates vertex 4.

Example 2

Input: V = 4, edges = [[0,1],[1,2],[2,3],[3,0]]

Output: []

Explanation: Every edge belongs to a cycle, so removing any single edge preserves connectivity.

Brute Force Approach

Every edge can be removed temporarily, followed by a graph traversal from vertex 0. The original graph is connected, so DFS from vertex 0 reaches all V vertices before any removal. After removing one edge, a DFS count smaller than V proves that the removed edge was necessary for connectivity.

Using edge indices distinguishes parallel edge occurrences. Rebuilding adjacency while skipping one exact edge index preserves every remaining parallel connection.

Algorithm

  • Initialize an empty answer list for bridge pairs.

  • Iterate through every edge index, treating each edge occurrence as a bridge candidate.

  • Build an undirected adjacency list while skipping only the selected edge index.

  • Run DFS from vertex 0, using the connected-graph assumption to test complete reachability.

  • Count visited vertices and record the removed edge when the count is smaller than V.

  • Normalize every recorded bridge as [minEndpoint, maxEndpoint].

  • Sort the bridge list lexicographically and return the sorted result.

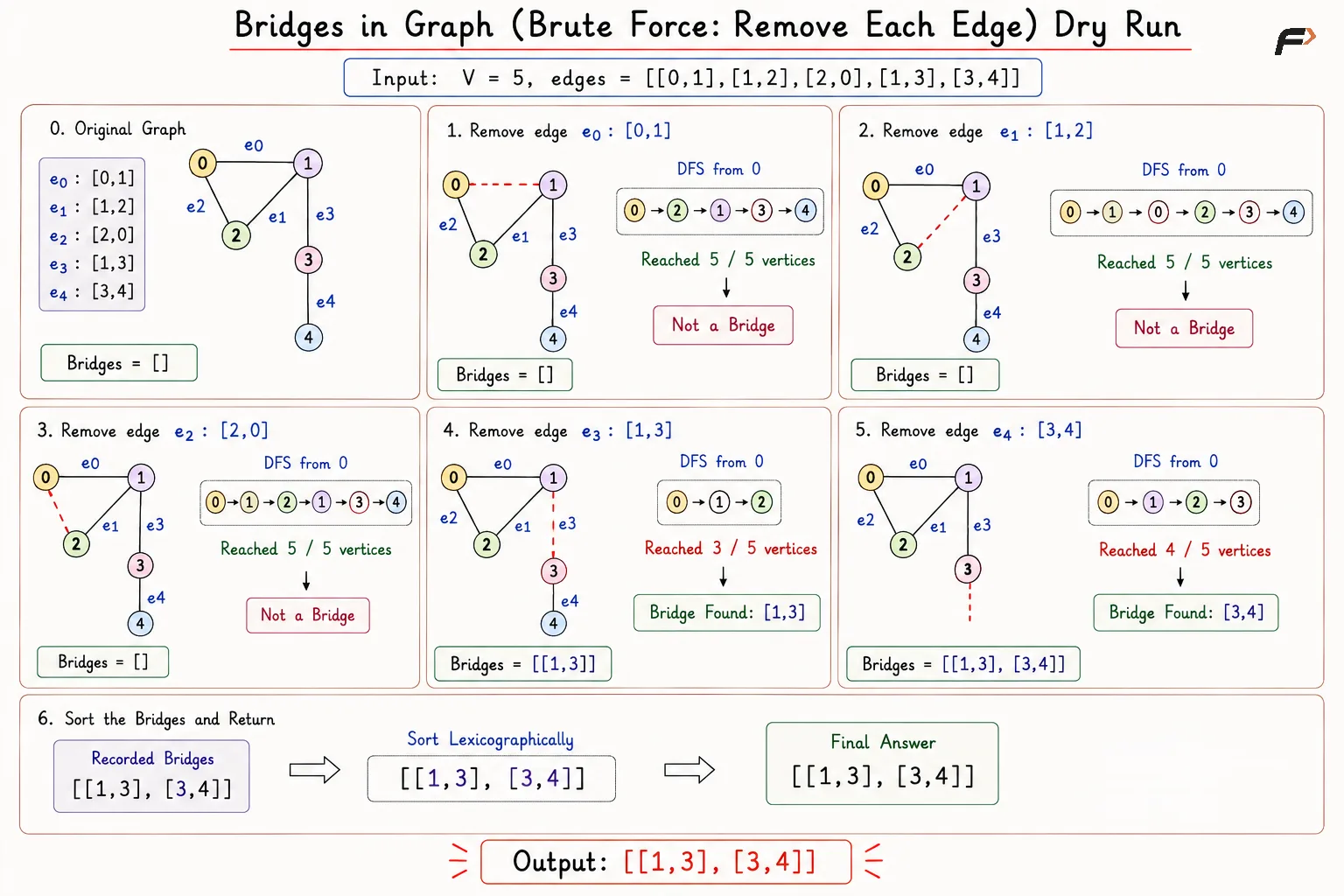

Dry Run

bridges in graph brute

bridges in graph brute

Solution

#include <bits/stdc++.h>
using namespace std;
class Solution {
private:
// Counts reachable vertices after skipping one edge.
int reachableCount(int vertices, vector<vector<int>>& edges, int skippedEdge) {
vector<vector<int>> adjacency(vertices);
// Build the graph without the selected edge occurrence.
for (int edgeId = 0; edgeId < static_cast<int>(edges.size()); edgeId++) {
// Skip only the current edge occurrence.
if (edgeId == skippedEdge) {
continue;
}
int first = edges[edgeId][0];
int second = edges[edgeId][1];
adjacency[first].push_back(second);
adjacency[second].push_back(first);
}
vector<bool> visited(vertices, false);
stack<int> pending;
// Start traversal from vertex zero.
pending.push(0);
visited[0] = true;
int reached = 0;
// Traverse the remaining graph from vertex zero.
while (!pending.empty()) {
int node = pending.top();
pending.pop();
// Count the current reachable vertex.
reached++;
// Visit all unvisited neighbors.
for (int neighbor : adjacency[node]) {
if (!visited[neighbor]) {
visited[neighbor] = true;
pending.push(neighbor);
}
}
}
// Return total reachable vertices.
return reached;
}
public:
// Finds bridges by removing every edge once.
vector<vector<int>> findBridges(int vertices, vector<vector<int>>& edges) {
vector<vector<int>> bridges;
// Remove each edge occurrence and test graph connectivity.
for (int edgeId = 0; edgeId < static_cast<int>(edges.size()); edgeId++) {
// If fewer vertices are reachable, the edge is a bridge.
if (reachableCount(vertices, edges, edgeId) < vertices) {
int first = min(edges[edgeId][0], edges[edgeId][1]);
int second = max(edges[edgeId][0], edges[edgeId][1]);
bridges.push_back({first, second});
}
}
// Sort bridge endpoints for deterministic output.
sort(bridges.begin(), bridges.end());
return bridges;
}
};
// Driver code.
int main() {
int vertices = 5;
vector<vector<int>> edges = {
{0, 1}, {1, 2}, {2, 0}, {1, 3}, {3, 4}
};
Solution solution;
vector<vector<int>> bridges = solution.findBridges(vertices, edges);
// Print every bridge edge.
for (const auto& edge : bridges) {
cout << "[" << edge[0] << "," << edge[1] << "] ";
}
return 0;
}

Complexity Analysis

Here, V is the number of vertices and E is the number of undirected edge occurrences.

Time Complexity: O(E×(V+E)), because every removed edge requires adjacency construction and DFS traversal.

Space Complexity: O(V+E), where rebuilt adjacency, visited markers, DFS storage, and the answer list store graph data.

Optimal Approach

Tarjan’s bridge algorithm uses one DFS to assign a discovery time to every vertex. A low-link value stores the smallest discovery time reachable through DFS tree edges followed by at most one back edge.

For a DFS tree edge from parent u to child v, condition low[v] > discovery[u] proves that the child subtree has no alternate route to u or an ancestor of u. Edge IDs distinguish parallel edge occurrences and prevent incorrect parent-edge skipping.

Algorithm

  • Build an undirected adjacency list containing {neighbor, edgeId} pairs, preserving every parallel edge occurrence.

  • Initialize discovery and low arrays with -1, then initialize the DFS timer.

  • Start DFS from vertex 0, since the problem guarantees a connected graph.

  • Skip only the exact parent edge ID during DFS, allowing parallel edges to update low-link values.

  • For every undiscovered neighbor v, run child DFS, update low[u] with low[v], and record a bridge when low[v] > discovery[u].

  • For every already discovered non-parent neighbor v, update low[u] with discovery[v], representing a back-edge connection.

  • Normalize every bridge endpoint pair, sort all bridges lexicographically, and return the final list.

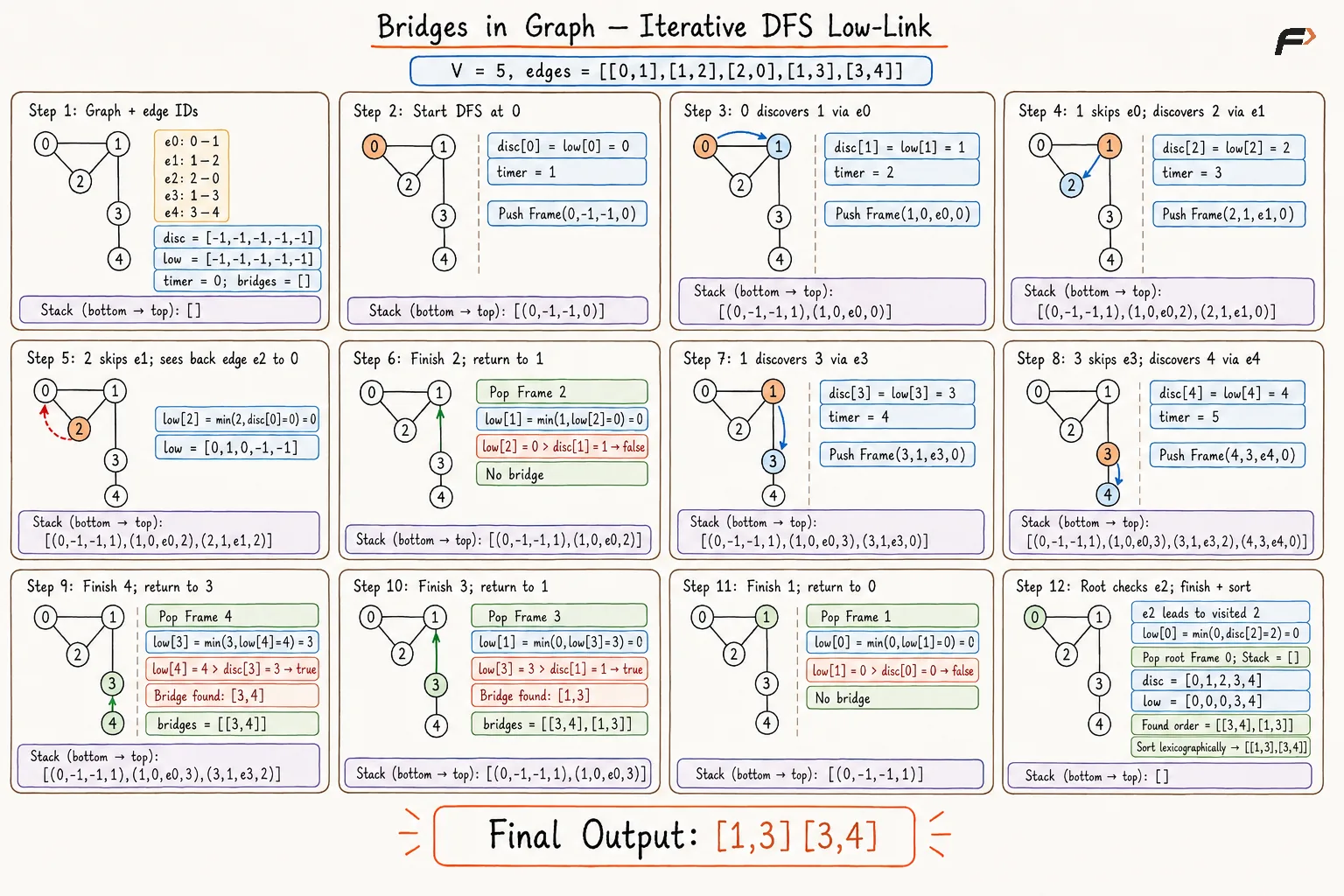

Dry Run

bridges-iterative-dfs-restyled-correct

bridges-iterative-dfs-restyled-correct

Solution

#include <bits/stdc++.h>
using namespace std;
class Solution {
private:
struct Frame {
int node;
int parent;
int parentEdge;
int nextIndex;
};
public:
// Finds bridges using discovery and low-link times.
vector<vector<int>> findBridges(int vertices, vector<vector<int>>& edges) {
vector<vector<pair<int, int>>> adjacency(vertices);
// Store a unique id with every undirected edge occurrence.
for (int edgeId = 0; edgeId < static_cast<int>(edges.size()); edgeId++) {
int first = edges[edgeId][0];
int second = edges[edgeId][1];
adjacency[first].push_back({second, edgeId});
adjacency[second].push_back({first, edgeId});
}
vector<int> discovery(vertices, -1);
vector<int> low(vertices, -1);
vector<vector<int>> bridges;
int timer = 0;
// Start a DFS tree from every unvisited vertex.
for (int start = 0; start < vertices; start++) {
// Skip already discovered components.
if (discovery[start] != -1) {
continue;
}
stack<Frame> frames;
// Assign discovery and low time to the start vertex.
discovery[start] = low[start] = timer++;
frames.push({start, -1, -1, 0});
while (!frames.empty()) {
Frame& frame = frames.top();
int node = frame.node;
// Process the next adjacent edge from the current frame.
if (frame.nextIndex < static_cast<int>(adjacency[node].size())) {
auto [neighbor, edgeId] = adjacency[node][frame.nextIndex++];
// Skip only the exact edge used to enter the vertex.
if (edgeId == frame.parentEdge) {
continue;
}
// Tree edge: discover a new vertex.
if (discovery[neighbor] == -1) {
discovery[neighbor] = low[neighbor] = timer++;
frames.push({neighbor, node, edgeId, 0});
}
// Back edge: update low-link using discovery time.
else {
low[node] = min(low[node], discovery[neighbor]);
}
continue;
}
// Finish the vertex after all edges are processed.
Frame finished = frame;
frames.pop();
// Root has no parent to update.
if (finished.parent == -1) {
continue;
}
// Propagate low-link value upward.
low[finished.parent] = min(low[finished.parent], low[finished.node]);
// If child cannot reach parent or above, edge is a bridge.
if (low[finished.node] > discovery[finished.parent]) {
bridges.push_back({
min(finished.parent, finished.node),
max(finished.parent, finished.node)
});
}
}
}
// Sort bridge endpoints for deterministic output.
sort(bridges.begin(), bridges.end());
return bridges;
}
};
// Driver code.
int main() {
int vertices = 5;
vector<vector<int>> edges = {
{0, 1}, {1, 2}, {2, 0}, {1, 3}, {3, 4}
};
Solution solution;
vector<vector<int>> bridges = solution.findBridges(vertices, edges);
// Print every bridge edge.
for (const auto& edge : bridges) {
cout << "[" << edge[0] << "," << edge[1] << "] ";
}
return 0;

Complexity Analysis

Here, V is the number of vertices and E is the number of undirected edge occurrences.

Time Complexity: O(V+E), because DFS processes every vertex and edge a constant number of times.

Space Complexity: O(V+E), where adjacency, discovery values, low-link values, DFS frames, edge IDs, and bridge pairs store graph state.

Interview follow-up Questions

Yes. An edge outside every cycle provides the only connection between both sides of the edge.
