Array Basics

Introduction and Basics of Arrays

An array is a linear data structure that stores multiple elements of the same data type in a fixed sequence. Every element occupies a specific position, called an index, which allows it to be accessed directly.

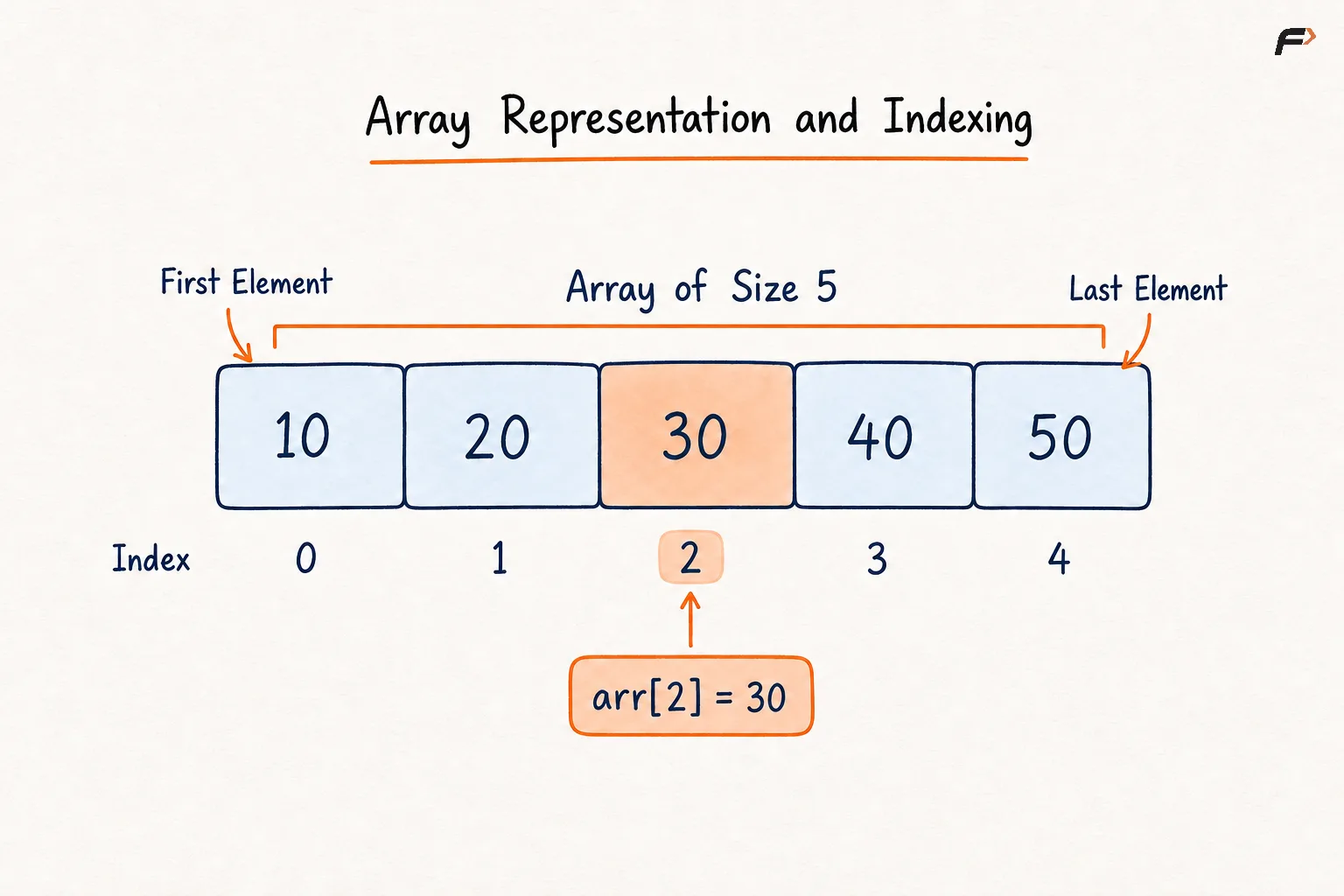

Consider the following array:

[10, 20, 30, 40, 50]

Its elements and indices are:

Most programming languages use zero-based indexing, so the first element is stored at index 0, the second at index 1, and the last element of an array of size N is stored at index N - 1.

Arrays are among the most commonly used data structures because they provide fast element access, simple traversal, and efficient storage.

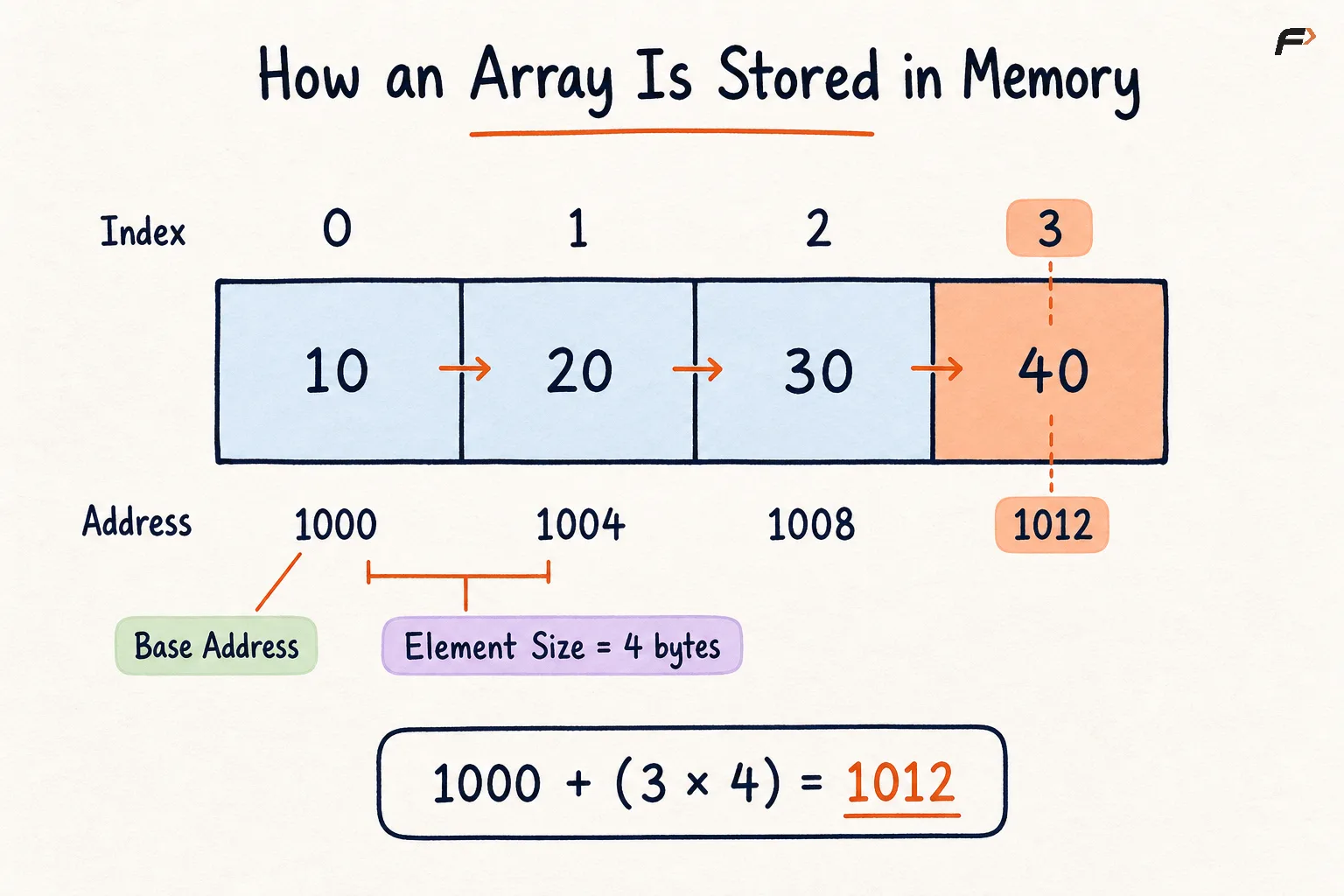

How Is an Array Stored in Memory?

Array elements are stored in contiguous memory locations, meaning each element is placed immediately after the previous element in memory.

Suppose every element requires 4 bytes and the first element begins at memory address 1000. The addresses would be:

Because the elements have equal sizes and consecutive addresses, the location of any element can be calculated directly:

Address of arr[i] = Base Address + (i × Size of Each Element)

This direct address calculation is why accessing an array element using its index takes constant time.

Important Array Terminology

Size and Capacity

The size and capacity of an array are not always the same.

Consider:

[10, 20, 30, _, _]

Here:

• Size is 3 because three valid elements are stored.

• Capacity is 5 because the allocated array has five positions.

• The final two positions are currently unused.

This difference becomes important while performing insertion and deletion operations.

Types of Arrays

One-Dimensional Array

A one-dimensional array stores elements in a single sequence.

Example:

[5, 10, 15, 20]

Each element is identified using one index.

Two-Dimensional Array

A two-dimensional array stores elements in rows and columns, similar to a matrix.

Example:

1  2  3
4  5  6

An element requires a row index and a column index. For example, the element in row 1 and column 2 is 6 when zero-based indexing is used.

Multidimensional Array

An array containing more than two dimensions is called a multidimensional array. Such arrays are useful when information needs to be represented across several dimensions.

Static and Dynamic Arrays

Static Array

A static array has a fixed capacity determined when the array is created. Its allocated storage cannot be expanded directly.

If a static array becomes full, inserting another element requires creating a larger array and copying the existing elements into it.

Dynamic Array

A dynamic array can increase its capacity when more space is required. Structures such as C++ vector and Java ArrayList behave like dynamic arrays.

Internally, a dynamic array usually creates a larger memory block and copies the existing elements when its current capacity becomes insufficient.

Basic Operations on Arrays

1. Access an Array Element

Given an array and an index K, retrieve the element stored at that index.

Consider:

arr = [10, 20, 30, 40]

For K = 2, the required element is:

arr[2] = 30

Algorithm

• Check whether K lies between 0 and N - 1.


• Use index K to directly locate the required element.


• Return the value stored at that index.


Time Complexity: O(1) because the element’s address is calculated directly.

Space Complexity: O(1) because no additional data structure is required.

2. Traverse an Array

Given an array of N elements, visit every element exactly once from the first index to the last index.

Consider:

arr = [10, 20, 30, 40]

Traversal order:

10 → 20 → 30 → 40

Algorithm

• Begin from index 0, which represents the first element.


• Visit and process the element stored at the current index.


• Move to the next index.


• Continue until index N - 1 has been processed.


• Stop after every valid element has been visited.


Time Complexity: O(N) because all N elements are visited once.

Space Complexity: O(1) because only an index variable is required.

3. Update an Array Element

Given an array, an index K, and a value X, replace the element at index K with X.

Consider:

arr = [10, 20, 30, 40]

Update index 1 with 25:

[10, 25, 30, 40]

Only the value at index 1 changes. The positions of the other elements remain unchanged.

Algorithm

• Check whether K is a valid array index.


• Locate the element directly using index K.


• Replace its existing value with X.


• Keep every other element unchanged.


Time Complexity: O(1) because the required position is accessed directly.

Space Complexity: O(1) because no additional storage is required.

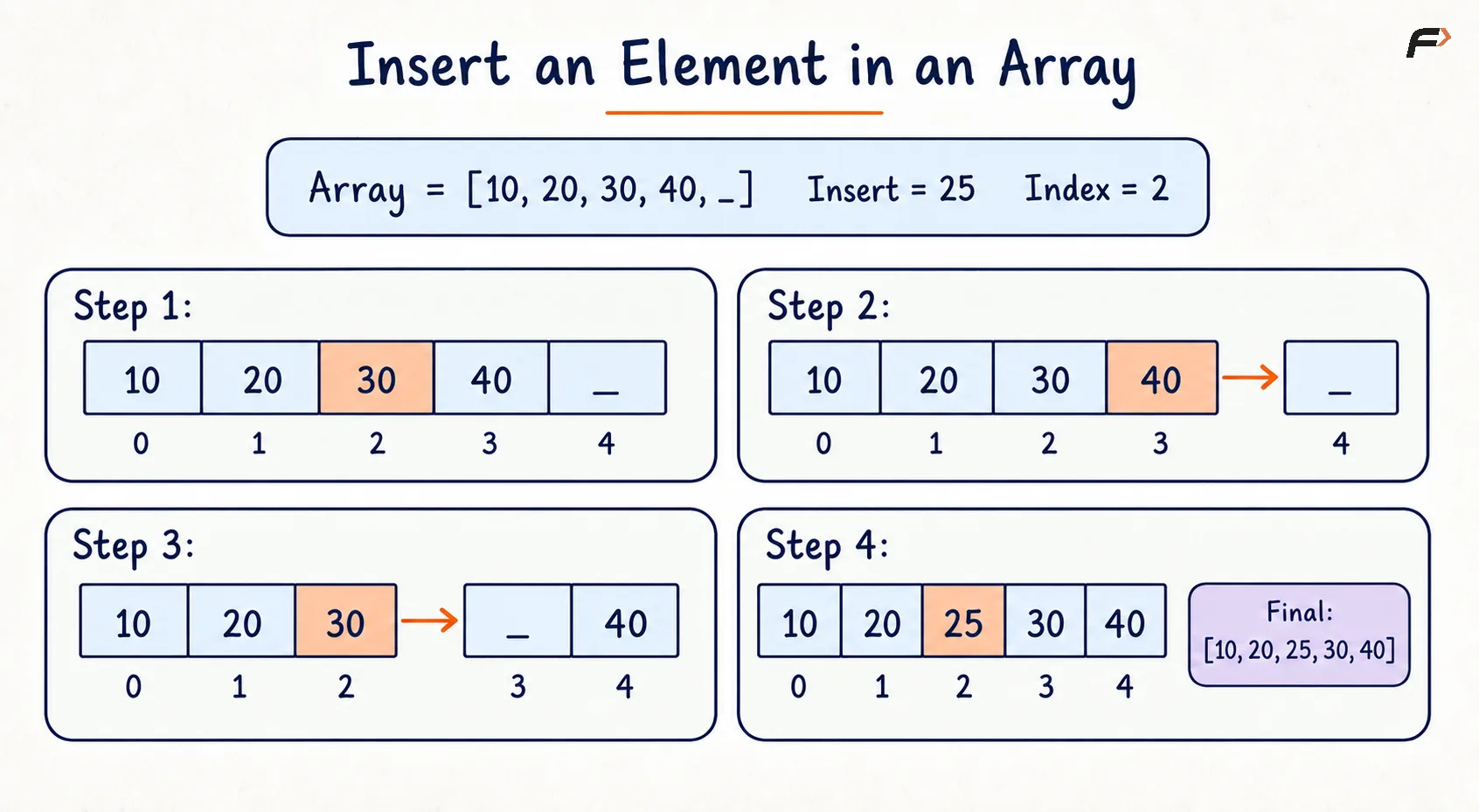

4. Insert an Element at a Given Position

Given an array, an index K, and a value X, insert X at index K.

Consider an array with available capacity:

[10, 20, 30, 40, _]

Insert 25 at index 2.

Before insertion:

[10, 20, 30, 40, _]

Shift the elements from index 2 onward one position to the right:

[10, 20, _, 30, 40]

Place 25 at index 2:

[10, 20, 25, 30, 40]

Elements must be shifted from right to left during the operation. Shifting in the opposite order could overwrite values that still need to be moved.

Algorithm

• Check whether the insertion index lies between 0 and N.


• Ensure that the array has enough capacity for one more element.


• Starting from the last valid element, shift each affected element one position to the right.


• Continue shifting until index K becomes available.


• Store X at index K and increase the logical size by one.


Time Complexity: O(N) in the worst case because multiple elements may need to be shifted.

Insertion at the end takes O(1) when unused capacity is available.

Space Complexity: O(1) auxiliary space because the insertion is performed within the existing array.

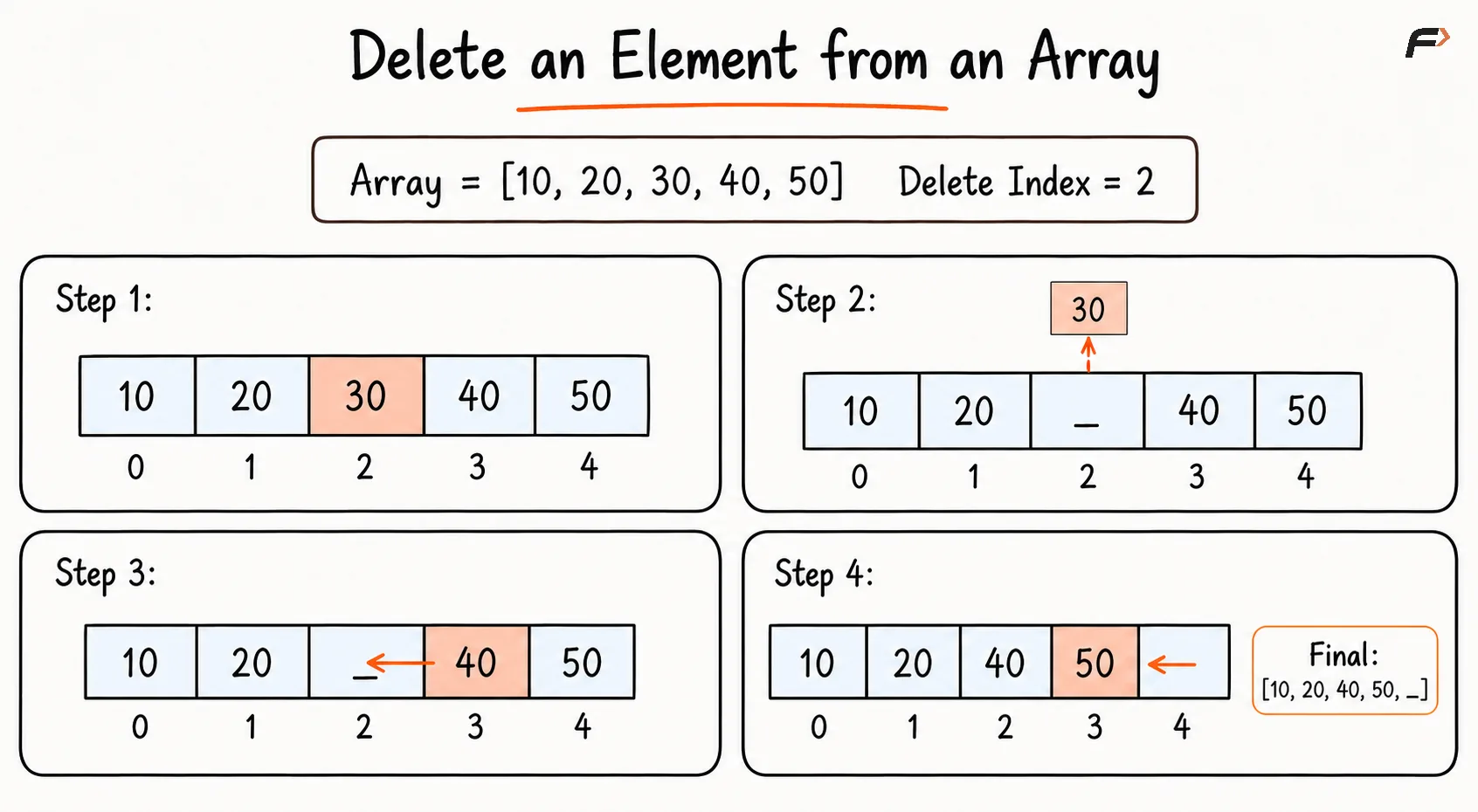

5. Delete an Element from a Given Position

Given an array and an index K, remove the element stored at that index.

Consider:

arr = [10, 20, 30, 40, 50]

Delete the element at index 2.

The value 30 is removed:

[10, 20, _, 40, 50]

The elements after it are shifted one position to the left:

[10, 20, 40, 50, _]

For a fixed-size array, deletion does not reduce the allocated capacity. It only decreases the number of valid elements.

Algorithm

• Check whether K lies between 0 and N - 1.

• Identify the element stored at index K.

• Starting from index K, shift every following element one position to the left.

• Continue until the last valid element has been shifted.

• Decrease the logical size of the array by one.

Time Complexity: O(N) in the worst case because the following elements may need to be shifted.

Deleting the last element takes O(1) because no shifting is required.

Space Complexity: O(1) because the operation uses no additional data structure.

6. Search for an Element

Searching determines whether a target value exists in an array and, if it exists, returns its index.

Linear Search

Linear search checks the elements one by one.

Consider:

arr = [12, 7, 25, 18]

Target:

25

The search checks:

12 → 7 → 25

The target is found at index 2.

Algorithm

• Begin from the first element of the array.

• Compare the current element with the target value.

• If they are equal, return the current index.

• Otherwise, move to the next element.

• If every element is checked without finding the target, report that it is absent.

Time Complexity: O(N) in the worst case because every element may need to be checked.

Space Complexity: O(1) because only an index is required.

Binary Search

If the array is sorted, binary search can locate an element in O(log N) time by repeatedly eliminating half of the remaining search space.

Binary search cannot be applied directly to an unsorted array.

Complexity Summary

These are auxiliary-space complexities of O(1) when the operations are performed within an already allocated array. Creating a larger array during resizing requires additional memory.

Advantages of Arrays

• Elements can be accessed directly in O(1) time using their indices.

• Contiguous memory storage provides efficient traversal and good cache performance.

• Arrays are simple to understand and implement.

• They are useful for storing and processing a fixed sequence of values.

• Other data structures, such as matrices, heaps, and hash-table buckets, can be built using arrays.

Limitations of Arrays

• A traditional array has a fixed capacity.

• Inserting or deleting elements from the beginning or middle requires shifting.

• A large allocated array may waste memory when only a few positions are used.

• A small array may need to be recreated when additional capacity is required.

• Elements generally need to belong to the same data type.

• Accessing an invalid index may cause an error or undefined behaviour, depending on the programming language.

Common Mistakes

• Accessing index N in an array of size N, even though the last valid index is N - 1.

• Using a negative index where the language does not support it.

• Confusing the number of stored elements with the total capacity.

• Shifting elements in the wrong direction during insertion.

• Forgetting to decrease the logical size after deletion.

• Applying binary search to an unsorted array.

• Trying to insert an element into a full fixed-size array without allocating additional space.
